Mack Truck All Engines Workshop Manual
The Mack Truck Repair and Service Manual is a complete technical reference book that includes information on all major Mack engine models. The manual provides detailed instructions for diagnosing, disassembling, assembling and repairing power units, as well as diagrams, tightening torque tables and electrical diagrams.
The document will be useful to owners, mechanics and service centers for proper maintenance of Mack engines, extending their service life and preventing serious breakdowns.
Includes:
- Step-by-step repair procedures for various Mack engine models.
- Service data, characteristics and tolerances.
- Electrical and hydraulic diagrams.
- Diagnostics of typical faults.
Mack E7 is a legendary inline 6-cylinder diesel engine (11–12 l), produced from the late 1980s to the early 2000s. It is reliable and simple.
Mack MP7 is a modern 11-liter engine used in medium- and heavy-duty trucks. Good balance of power and efficiency.

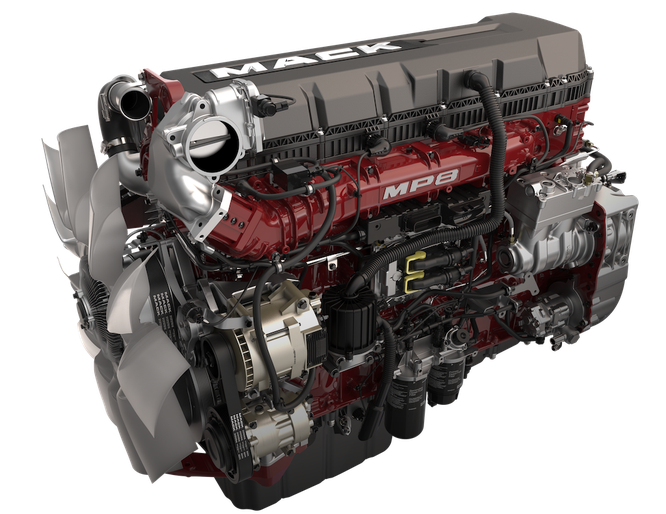

Mack MP8 is a 13-liter engine, one of the most popular, used in tractors and dump trucks. It is characterized by high traction and durability.
Mack MP10 is a powerful 16.1-liter engine, used for severe conditions and heavy loads (up to 605 hp).
Mack E-Tech is a development of the E7 series, with electronic control, used in the 2000s.
Mack END/ENDT Series (old) – engines from the 1960s–80s that earned a reputation for being “indestructible”.
2010 Emission Control Systems Mack Class 8 Diesel Engine Warranty Book MP7-8-10
2010 Maintenance and Lubrication MP7, MP8, and MP10 Engines Operator’s Manual
Emission Control Systems For Mack Class 8 Diesel Engines Warranty Handbook
FP Diesel Mack Engines – catalog No.CA0060
Mack ASET AC Diesel Engine Service Manual – for engine with EGR.
Mack E-Tech Engine Service Manual
Mack E7 Engine Overhaul Manual
Mack E7 PLN Engine Service Manual (5-101)
Mack MP Engine Series MP7 & MP8
Mack MP7-MP8 Engine – Sensors 2010
Mack MP7, MP8, and MP10 Engines – Body Manuals
Mack MP7, MP8, and MP10 Engines – Maintenance and Lubrication PDF Manual.
Mack MP7,MP8,MP10 Engines Overhaul Part Numbers Reference Guide Vol 16013B
Mack MP8 Diesel Engine Service Manual (’07 Emissions Regulations)
Mack Mp8 Diesel Engine Service Manual (Euro 4).
Mack MP8 Engine Sensor Locations – PDF Manual
Mack MP8 Engine Service Repair Manual
Mack Truck Transmission Service Manual
Mack Truck Error Codes Manual
Mack Service Manual – Trucks Engine Control Module (ECM), Diagnostic Trouble Code (DTC), Guide for CHU, CXU, GU, TD
FMI SAE Text
0 Data valid but above normal operational range - Most severe level
1 Data valid but below normal operational range - Most severe level
2 Data erratic, intermittent or incorrect
3 Voltage above normal, or shorted to high source
4 Voltage below normal, or shorted to low source
5 Current below normal or open circuit
6 Current above normal or grounded circuit
7 Mechanical system not responding or out of adjustment
8 Abnormal frequency or pulse width or period
9 Abnormal update rate
10 Abnormal rate of change
11 Root cause not known
12 Bad intelligent device or component
13 Out of calibration
14 Special instructions
15 Data valid but above normal operating range - Least severe level
16 Data valid but above normal operating range - Moderately severe level
17 Data valid but below normal operating range - Least severe level
18 Data valid but below normal operating range - Moderately severe level
19 Received network data in error
20 Reserved for SAE assignment
21 Reserved for SAE assignment
22 Reserved for SAE assignment
23 Reserved for SAE assignment
24 Reserved for SAE assignment
25 Reserved for SAE assignment
26 Reserved for SAE assignment
27 Reserved for SAE assignment
28 Reserved for SAE assignment
29 Reserved for SAE assignment
30 Reserved for SAE assignment
31 Condition exists
