APPLICABLE MODELS
The contents of this section apply to the following models and serial number ranges.
|
MODEL |
SERIAL NUMBER RANGE |
|
DX180LC |
5001 and Up |
|
DX225LC |
5001 and Up |
|
DX225NLC |
5001 and Up |
|
DX255LC |
5001 and Up |
|
DX300LC |
5001 and Up |
|
DX340LC |
5001 and Up |
|
DX420LC |
5001 and Up |
|
DX480LC |
5001 and Up |
|
DX520LC |
5001 and Up |

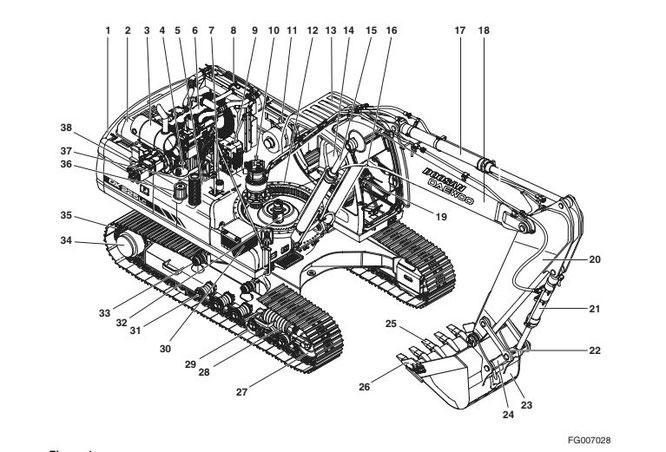

Specificationfor DX225LC
|
Reference |
Number Description |
|
1 |
Counterweight |
|
2 |
Hood |
|
3 |
Muffler |
|
4 |
Hydraulic Oil Tank |
|
5 |
Fuel Tank |
|
6 |
Engine |
|
7 |
Fuel Tank Fill Cap |
|
8 |
Radiator and Oil Cooler |
|
9 |
Control Valves |
|
10 |
Swing Motor |
|
11 |
Air Cleaner |
|
12 |
Swing Bearing |
|
13 |
Cabin |
|
14 |
Seat |
|
15 |
Boom Cylinder |
|
16 |
Work Lever (Joystick) Controls |
|
17 |
Arm Cylinder |
|
18 |
Boom |
|
19 |
Travel Lever |
|
20 |
Arm |
|
21 |
Bucket Cylinder |
|
22 |
Guide Link |
|
23 |
Bucket |
|
24 |
Push Link |
|
25 |
Tooth Point |
|
26 |
Side Cutter |
|
27 |
Idler |
|
28 |
Track Adjuster |
|
29 |
Track Guide |
|
30 |
Battery |
|
31 |
Lower Roller |
|
32 |
Center Joint |
|
33 |
Upper Roller |
|
34 |
Travel Motor |
|
35 |
Track Link and Shoe |
|
36 |
Suction Filter |
|
37 |
Return Filter |
|
38 |
Pumps |
GENERAL DIMENSIONS
Specification for DX225LC
|
DIMENSION |
5.2 M (17.1 ft) BOOM |
5.7 M (18.7 ft) BOOM |
|||
|
2.0 M (6.6 ft) |
2.4 M (7.9 ft) |
2.4 M (7.9 ft) |
2.9 M (9.5 ft) |
3.5 M (11.5 ft) |
|
|
A |
9,080 mm (29' 9") |
8,990 mm (29' 6") |
9,500 mm (31' 2") |
9,485 mm (31' 1") |
9,500 mm (31' 2") |
|
B |
2,750 mm (9' 0") |
||||
|
C |
6,330 mm (20' 9") |
6,240 mm (20' 6") |
6,750 mm (22' 2") |
6,735 mm (22' 1") |
6,750 mm (22' 2") |
|
D |
3,650 mm (11' 12") |
||||
|
E |
4,445 mm (14' 7") |
||||
|
F |
1,055 mm (3' 6") |
||||
|
G |
3,210 mm (10' 6") |
3,050 mm (10' 0") |
3,110 mm (10' 2") |
3,005 mm (9' 10") |
3,290 mm (10' 10") |
|
H |
2,710 mm (8' 11") |
||||
|
I |
1,400 mm (4' 7") |
||||
|
J |
1,310 mm (4' 4") |
||||
|
K |
2,390 mm (7' 10") |
||||
|
L |
2,990 mm (9' 10") |
||||
|
M |
600 mm (1' 12") |
||||
|
N |
480 mm (1' 7") |
||||
|
O |
2,975 mm (9' 9") |
||||
Electrical Schematic (DX180LC/ DX225LC/ DX225NLC/ DX255LC)
Schematic (s) presented in this section are laid out on facing pages.
An overlapping edge has been taken into consideration so a photocopy can be made and pasted together to make a complete schematic.
